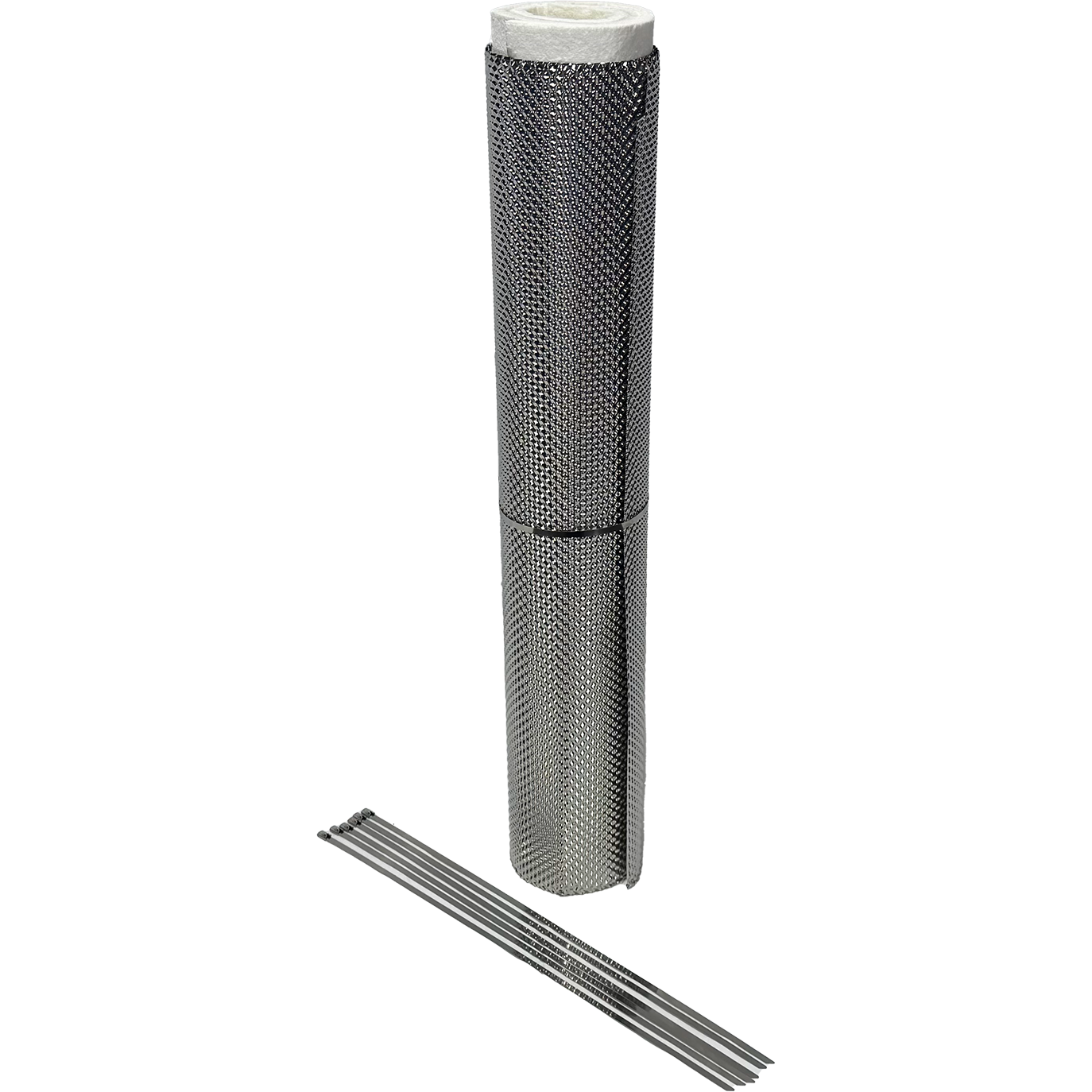

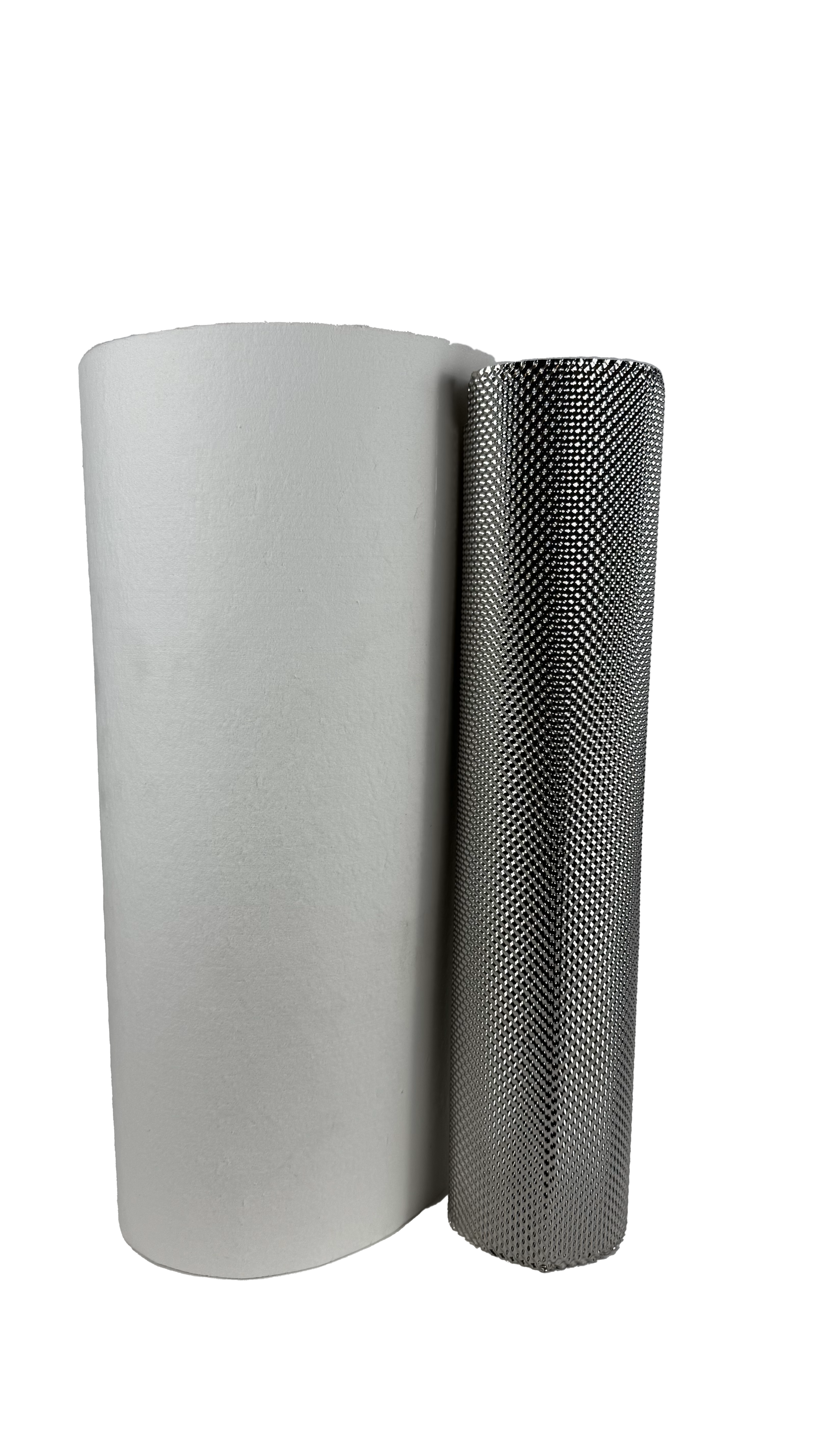

Stainless Insulation Kit

Our signature stainless steel 316L sheet with our extreme temperature rated insulation in a complete kit with stainless tie straps.

316L (low carbon) stainless steel dimpled texture

• Low carbon variant is able to handle heat cycles without hardening and becoming brittle.
• Easy to form and cut
• Excellent for use as underbody shielding material
• Extremely resistant to salt corrosion
• Use to replace factory aluminum underbody shielding that corrodes at fastener locations

Extreme temperature rated insulating material. Zirconium infused ceramic paper, rated for 1350*C constant duty.

• High density 220kg/m3
• A wide variety of applications in automotive such as:
  • Underbody insulation

  • Hood insulation
  • Direct on exhaust/manifold insulation
  • Fresh air intake insulation

Product specs:
Ceramic insulation
Thickness: 6mm
Width: 24"
Density: 220kg/m3

Stainless sheet
Thickness: 0.1mm
Width: 600mm/23.62"

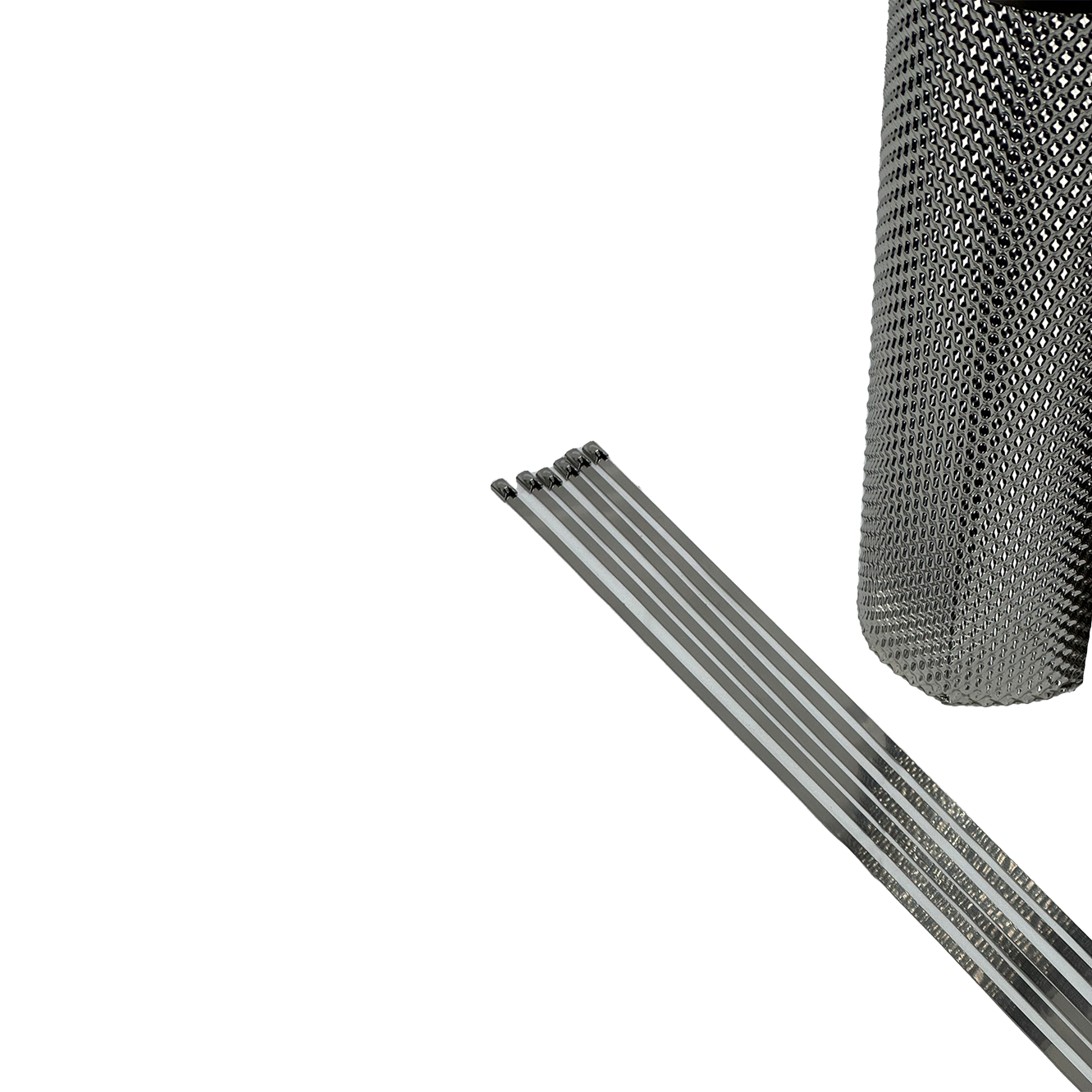

Kit includes 6 stainless steel tie straps.
