Ceramic Insulation
Ceramic Insulation
Couldn't load pickup availability

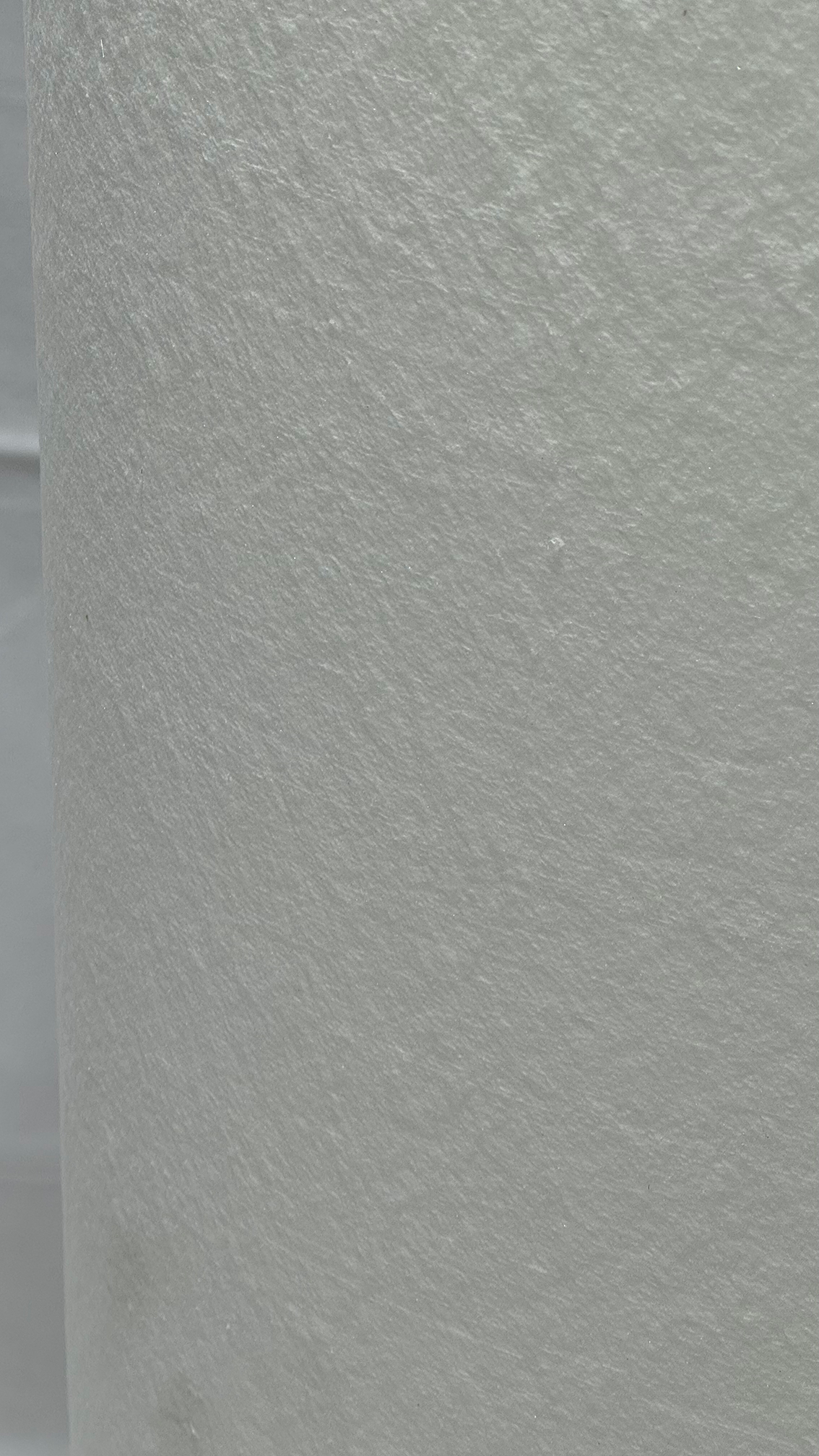

Extreme temperature rated insulating material. Zirconium ceramic paper, rated for 1350*C constant duty. Designed for use in furnaces and kilns, so you know it can handle the extreme temperatures seen in Motorsports.
- High density 220kg/m3
- A wide variety of applications in automotive such as:
- Underbody insulation
- Hood insulation
- Direct on exhaust/manifold insulation
- Fresh air intake insulation
- Underbody insulation
Product specs:
Thickness: 6mm
Width: 24"
Density: 220kg/m3

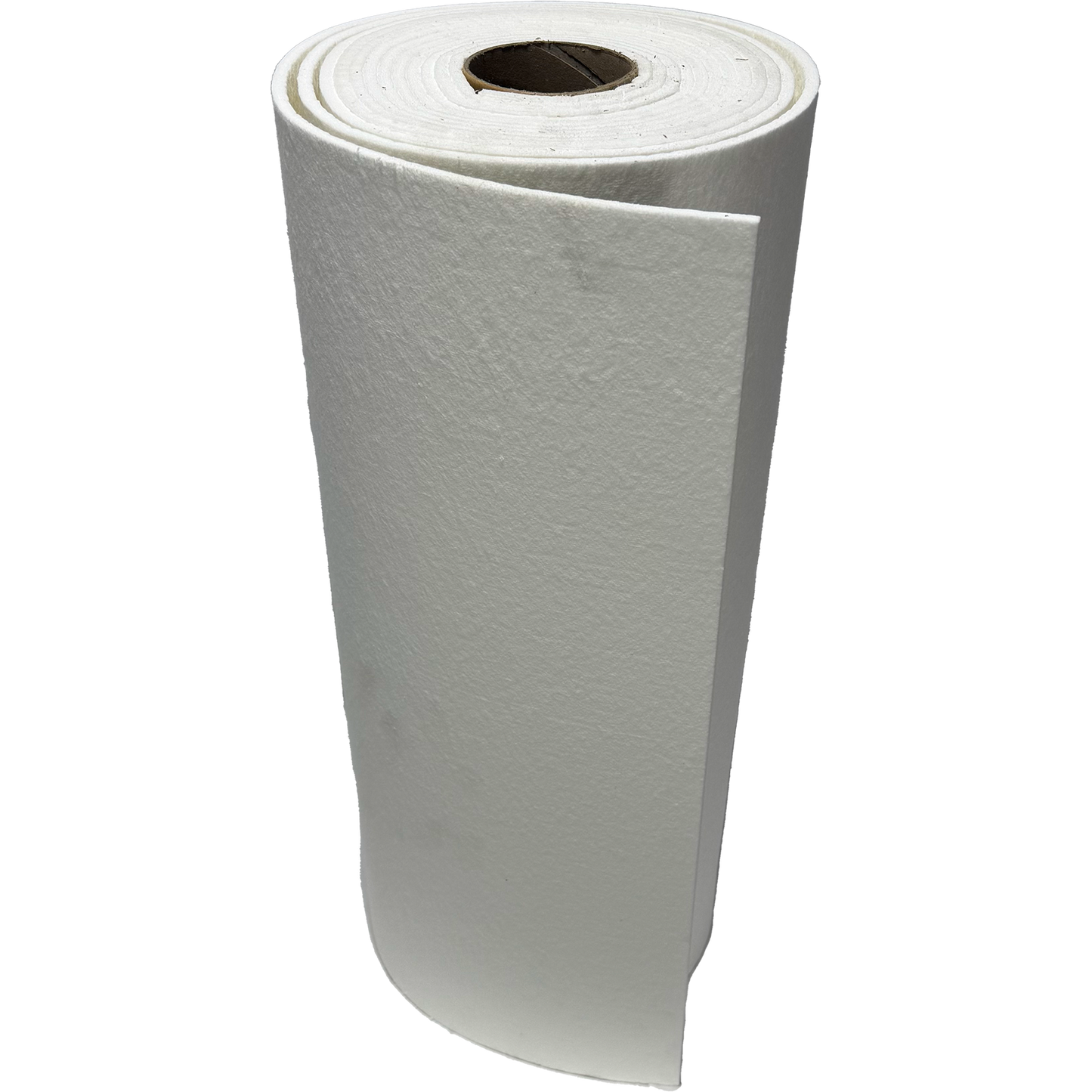

Continuous roll is priced per foot, and will be sent out as a single cut piece. If large sections are needed contact us for better bulk discounts.
Refractory materials contain fibers which are carcinogenic, use appropriate PPE, respirator and gloves are recommended.
Technical data:
|
Type |
Standard ceramic fiber paper |
High pure ceramic fiber paper |
High Aluminium ceramic fiber paper |
Zirconium ceramic fiber paper |
|
|
Chemical analysis (%) |
AL2O3 |
43 |
47 |
55 |
38 |
|
SiO2 |
53 |
51 |
44 |
44 |
|
|
Fe2O3+Ti2O3 |
≤1.2 |
≤0.3 |
≤0.3 |
≤0.2 |
|
|
CaO+MgO |
≤0.3 |
≤0.3 |
≤0.3 |
≤0.2 |
|
|
NaO+K2O |
≤0.5 |
≤0.3 |
≤0.3 |
≤0.2 |
|
|
Organic Content (%) |
5% |
5% |
≤5% |
≤5% |
|
|
Density(kg/m3) |
180-220 |
180-220 |
180-220 |
180-220 |
|
|
Work Temperature |
1050 |
1150 |
1250 |
1350 |
|
|
Thickness |
0.5-10mm |
||||
